Specifications
P2.5mm
P1.87mm
P1.56mm
P1.25mm
- Pixel Pitch : 2.5MM
- Module Resolution : 80*40
- Power : <380W/SqM
- Brightness: ≥800cd/m2
- Pixel Pitch : 1.87MM
- Module Resolution : 104*52
- Power : <385W/SqM
- Brightness: ≥800cd/m2
- Pixel Pitch : 1.56MM
- Module Resolution : 128*64
- Power : <310W/SqM
- Brightness: ≥600cd/m2
- Pixel Pitch : 1.25MM
- Module Resolution : 208*104
- Power : <368W/SqM
- Brightness: ≥600cd/m2
GET A FREE QUOTE NOW!
Specifications (cont)
- MTBF : >100000 hrs
- Defect rate : < .03% prior to delivery
- Optimum Viewing Area : >170 deg H & V
- Optimum Viewing Dist : >Pixel pitch*Meters - ex:4mm = 4m viewing
- Refresh Rate : 3480Hz
- Cabinet Depth : 31mm
- Cabinet Depth : 31mm
- Color Range : near HDR
- Gray Scale (bits) : 14-16
- Attenuation : <15% (first 3 years - average use)
- Processor: Novastar A5s Plus
- Warranty : see warranty sheet for details

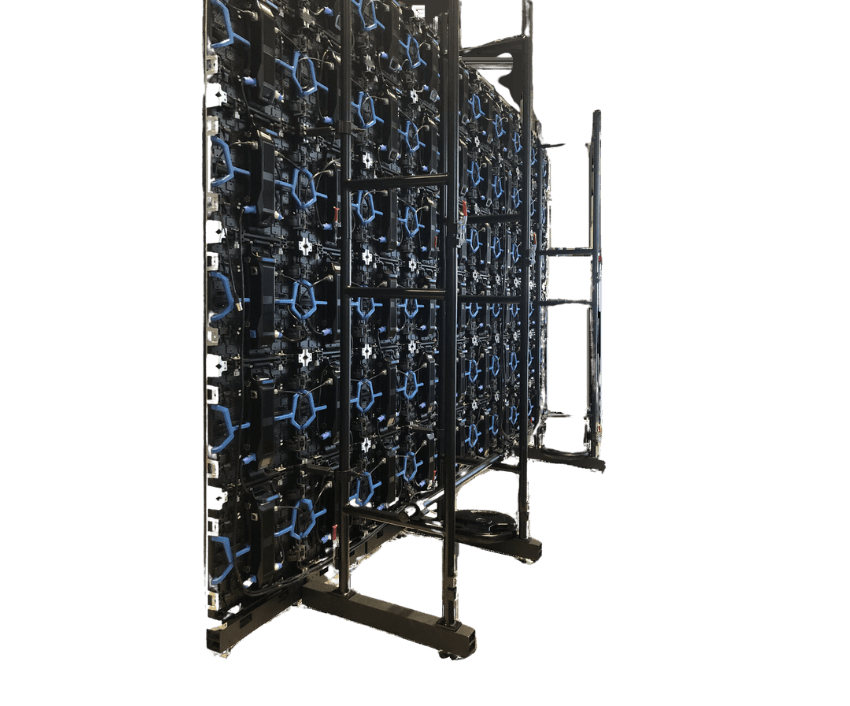

- Mounting : Wall mount, or optional fly bar
- Weight : ~4.5kg/cabinet
- Power : AC 100-240v 60Hz

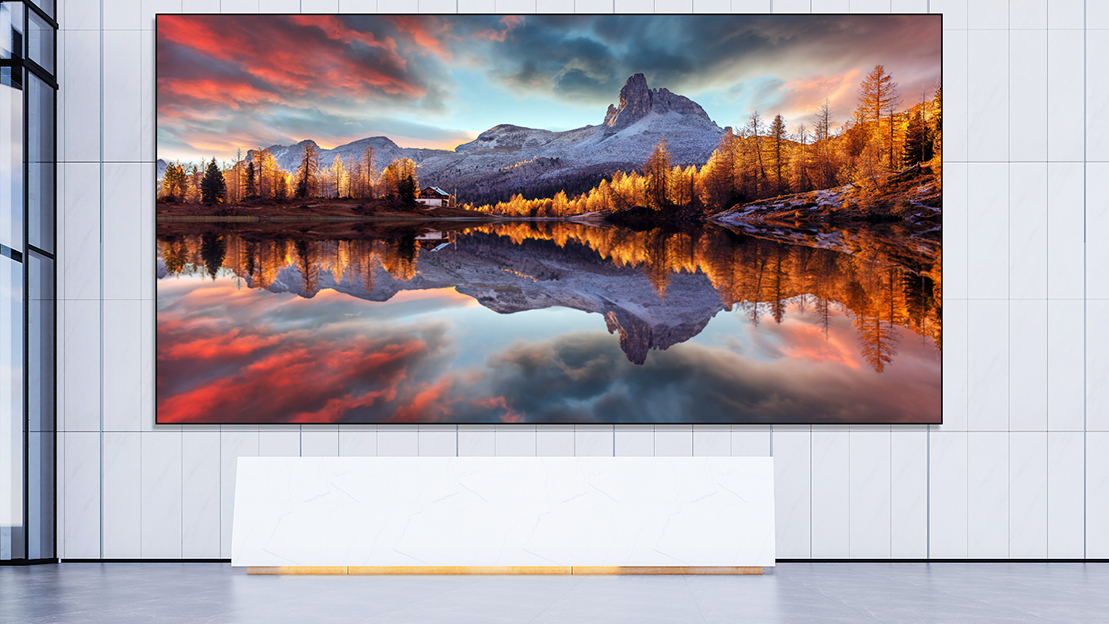

Simplicity Video Wall

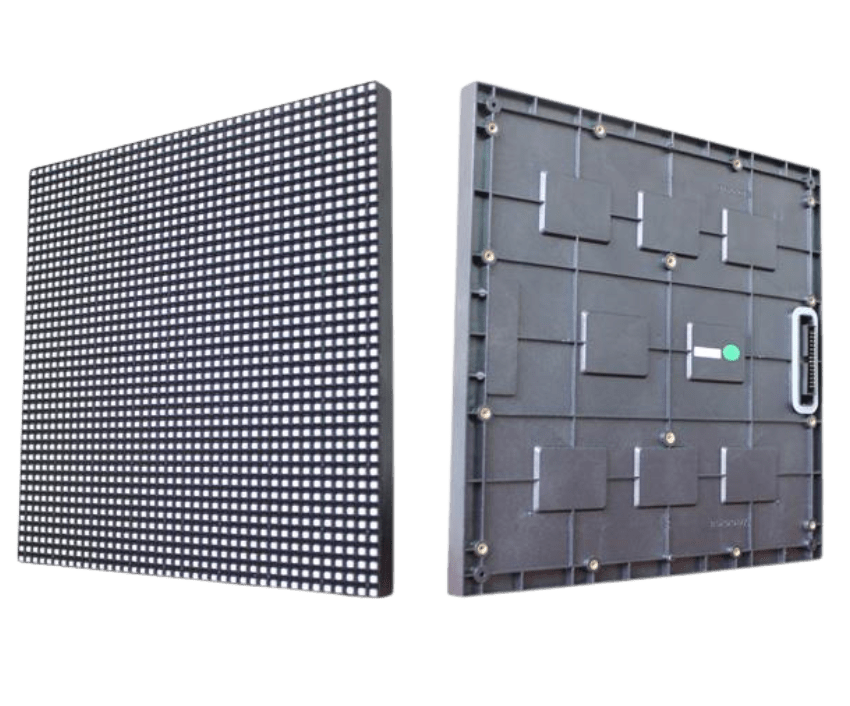

Our Simplicity Series continues on the success of the high quality modules that we utilize with our Integrator Series. These fine pixel pitch modules (from 2.5mm down to 1.25mm) take the high quality LED displays that you get from the Integrator Series and allow you to wall mount or hang it in custom sizes. These cabinets are ultra-slim at 31mm depth!
This utilizes Novastar processors for wide compatibility with existing processors and video walls on the market.
