Specifications
ProLite P3.9mm
ProLite Curve Indoor P2.8mm
ProLite Curve Indoor P2.6mm
- Pixel Pitch : 3.9MM
- Brightness : 900nits
- Scanning Mode : 1/16
- Module Resolution : 64*64
- Power : <600W/SqM
- Weight: 5.5kg
- LED Package: SMD2020 Black LED
- Cabinet: 500x500mm
- Pixel Pitch : 2.8MM
- Brightness : 900nits
- Scanning Mode : 1/22
- Module Resolution : 88*88
- Power : <600W/SqM
- Weight: 8.6kg
- Curve Locks: -5°, -2.5°, 0, +2.5°, 5°.
- LED Package: SMD2020 (standard LED)
- Cabinet: 500mmx500mm
- Pixel Pitch : 2.6MM
- Brightness : 900nits
- Scanning Mode : 1/24
- Module Resolution : 96*96
- Power : <600W/SqM
- Weight: 8.6kg
- Curve Locks: -5°, -2.5°, 0, +2.5°, 5°.
- LED Package: SMD1515 (standard LED)
- Cabinet: 500mmx500mm
ProLite Curve Outdoor P3.9mm (Long)
ProLite Curve Outdoor P3.9mm
- Pixel Pitch : 3.9MM
- Brightness : 4500nits
- Scanning Mode : 1/8
- Module Resolution : 64*64
- Power : <750W/SqM
- Weight: 16kg
- Curve Locks: -5°, -2.5°, 0, +2.5°, 5°.
- LED Package: SMD1921 Black LED
- Cabinet: 500mmx1000mm
- IP Rating: IP65
- Pixel Pitch : 3.9MM
- Brightness : 4500nits
- Scanning Mode : 1/8
- Module Resolution : 64*64
- Power : <750W/SqM
- Weight: 8.6kg
- Curve Locks: -5°, -2.5°, 0, +2.5°, 5°.
- LED Package: SMD1921 Black LED
- Cabinet: 500mmx500mm
- IP Rating: IP65
Specifications (cont)
- LED Lifetime : >100000 hrs
- Defect rate : < .03% prior to delivery
- Optimum Viewing Area : >150 deg H & V
- Optimum Viewing Dist : >Pixel pitch*Meters - ex:4mm = 4m viewing
- Refresh Rate : 7680Hz (standard)
- Innovative Corner Protection for Curved Walls
- Color Range : 16.7M Colors
- Gray Scale (bits) : 16
- Attenuation : <15% (first 3 years - average use)
- Bottom Row Protection Feet
ProLite Video Wall
Our ProLite and ProLite Curve, flown or optional ground stacked video wall allows simplicity on the installation. The ProLite at only 5.5kg (12.2lbs) can be installed by 1 person easily! The Curve weighs in at a svelte 8.6kg! All panels are 500mm wide by 500mm tall. These are great cabinets for rental or installation. The outdoor curve can be a mix of the 500x500mm and 500x1000mm cabinets!

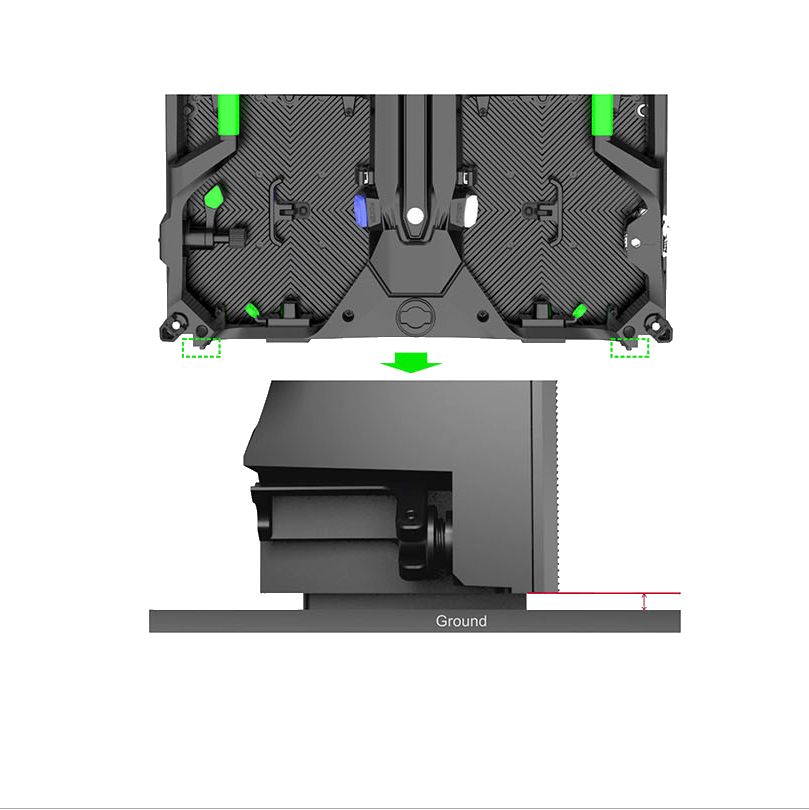

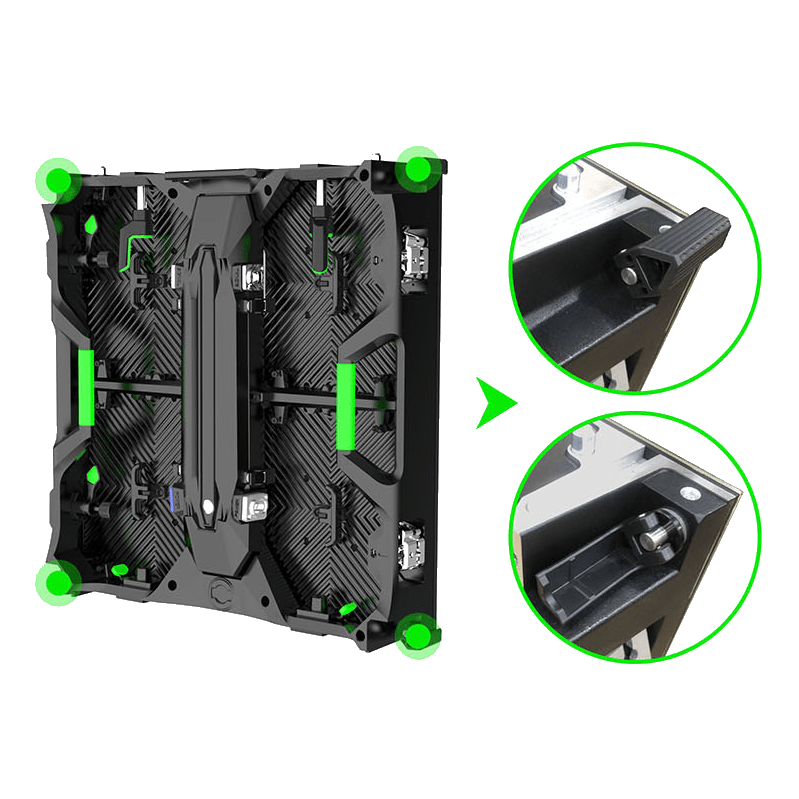

The Curve has locks at -5°, -2.5°, 0, +2.5°, 5°. The Curve also has innovative flip out corner protection to keep the corner LEDs safe. They both have feet that stand off the ground to protect the bottom row of pixels. All of these features add up to be our ProLite LED walls.
These walls also utilize Novastar processors for wide compatibility with existing processors and video walls on the market.
